Custom Tooling for Plastic Injections

Mold Making and Precision Tooling

Retlaw Industries has been a leader in tool making for plastic injection molds for a variety of industries. Our master tool makers work with our state of the art machinery to create the exact mold you need for your OEM parts.

The tooling specialists at Retlaw work in tandem with CAD designers to create custom high-accuracy tool molds for thermoplastic products. We use a wide variety of tools and CNC machines, from Wire Electrical Discharge Machining and Sinker EDM to CNC lathes and surface grinders. Working together, our designers and machinists can make just about any plastic mold you can dream up.

Let's Get Started on Custom Tooling!

Contact the machine tooling specialists at Retlaw to have your own custom mold machined by the experts.
Custom Tooled Mold
Precision Tooling at Retlaw
Sinker EDM at Work
Injection Molding Tooling
Steel Machining and Tooling
Precision Mold for Thermoplastics
Sinker EDM with Dielectric Fluid
Tooling Drill Bits
CNC Drill Press
Sinker EDM Electrode
Tooling and Plastic Mold
Carbide Electrodes
Precision Machined Molds
EDM Electrodes

Graphite Electrode Machining for Sinker EDMEDM Tooling and Composite Part Design

Retlaw produces graphite patterns for use in the EDM process. Machining graphite to shape and burn the detail into steel can reduce lead time and create extreme detail, resulting in faster turnaround times for your product.

EDM Machining

After the graphite block is machined into a graphite electrode it is mounted to an electrode holder and inserted in the EDM machine where a positive or negative charge is applied to the graphite. The charged graphite transfers its charge to the steel mold material, and the sparks erode the steel to create opposite shapes required to create the tooling.

In order to control the spark, the electrode is submerged in an insulating liquid, often de-ionized water or oils. The electrode is kept at a consistent distance from the work piece and the dielectric fluid surrounding it prevents short circuiting. This entire process is called sinker or ram EDM.

Precise Wire EDMWire EDM spooling machine

Retlaw is able to cut molds to the highest tolerances possible thanks to our Wire EDM machines. Wire EDM sends an electrical charge through a piece of wire. The wire cuts an extremely precise line as it cuts through steel up to 12 inches thick with tolerances as small as .0005".

EDM techniques enable cutting without burring, which reduces the need for additional finishing of the work piece.

Get a Product Quote!

Tool Making Equipment

Below is a list of some of the equipment Retlaw's expert tool makers use:

Retlaw’s EDM Machines

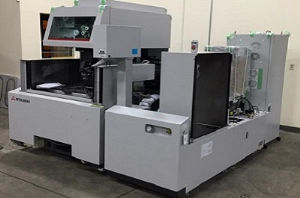

  • Mitsubishi MV2400-S Wire Electrical Discharge Machine
  • Charmille CNC Electrical Discharge Machine - Type Roboform 51
  • Charmille CNC Electrical Discharge Machine - Type Roboform 35P
  • Charmille Electrical Discharge Machine - Type D10

CNC Machines and Controllers

  • Milltronics - Model MB20 with Centurion 6 SLS Control
  • Voest Lathe - 17" x 10"
  • Miltronics CNC Lathe - 17.5" swing X 40" centers
  • OKK - VM5 M635 CNC Control - 13,000 RPM
  • OKK – DGM400 M635 CNC Control – 30,000 RPM

…And Many More

Contact the tooling experts at Retlaw to begin building molds for your next plastics project.
